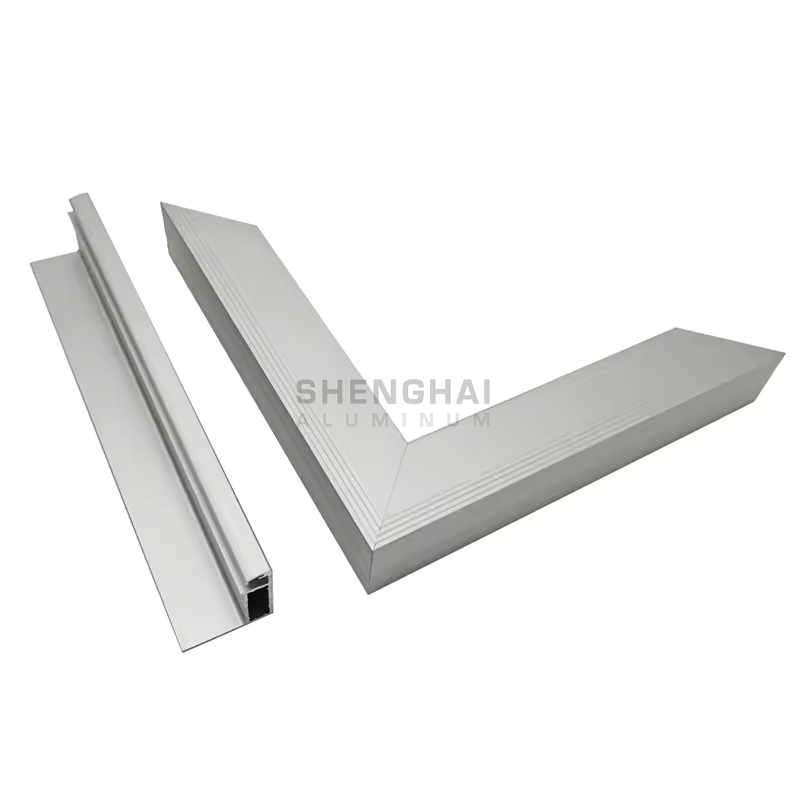

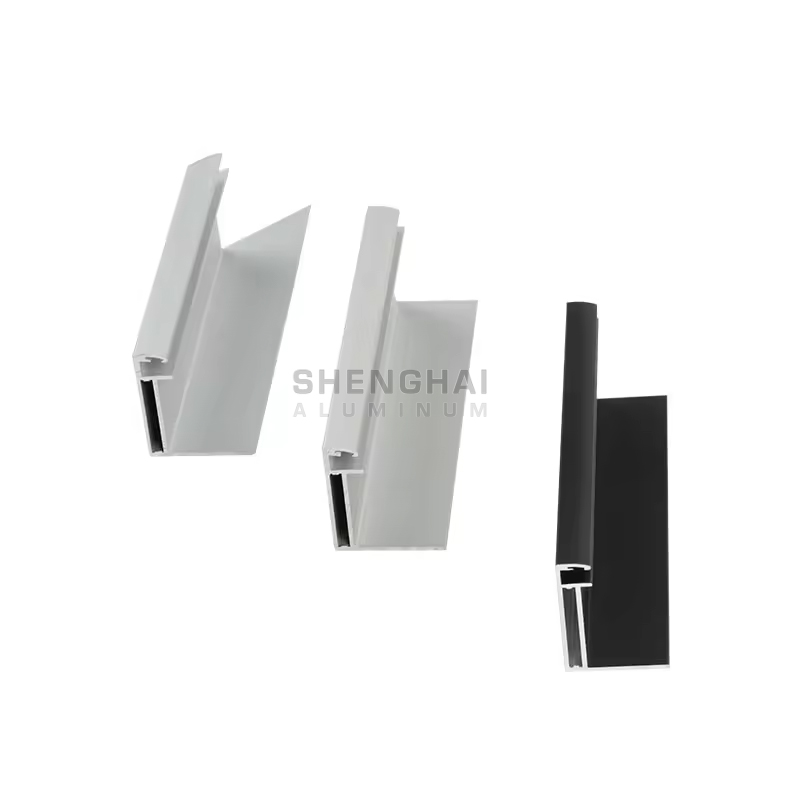

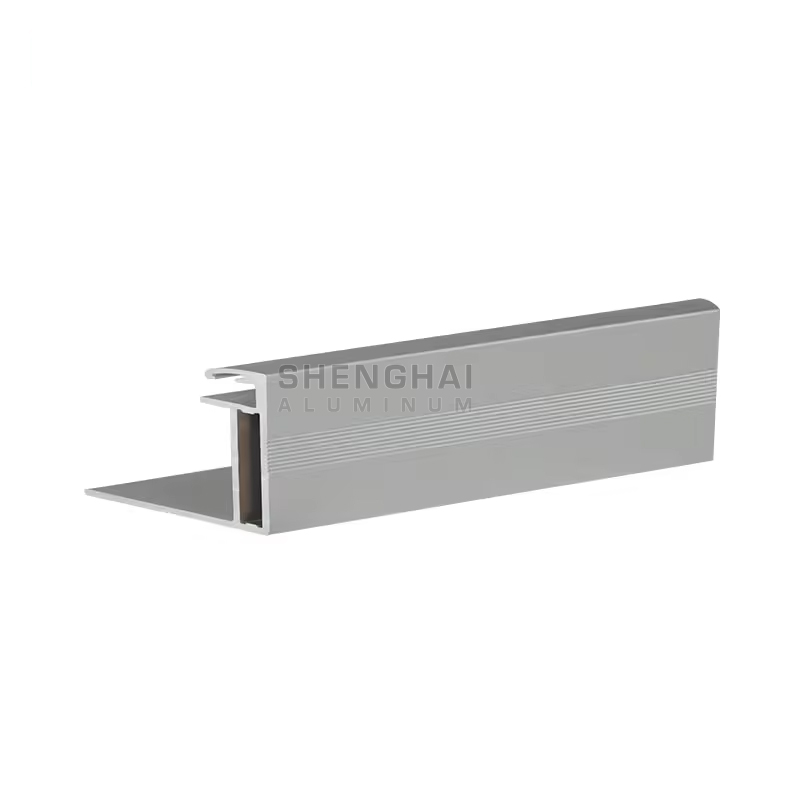

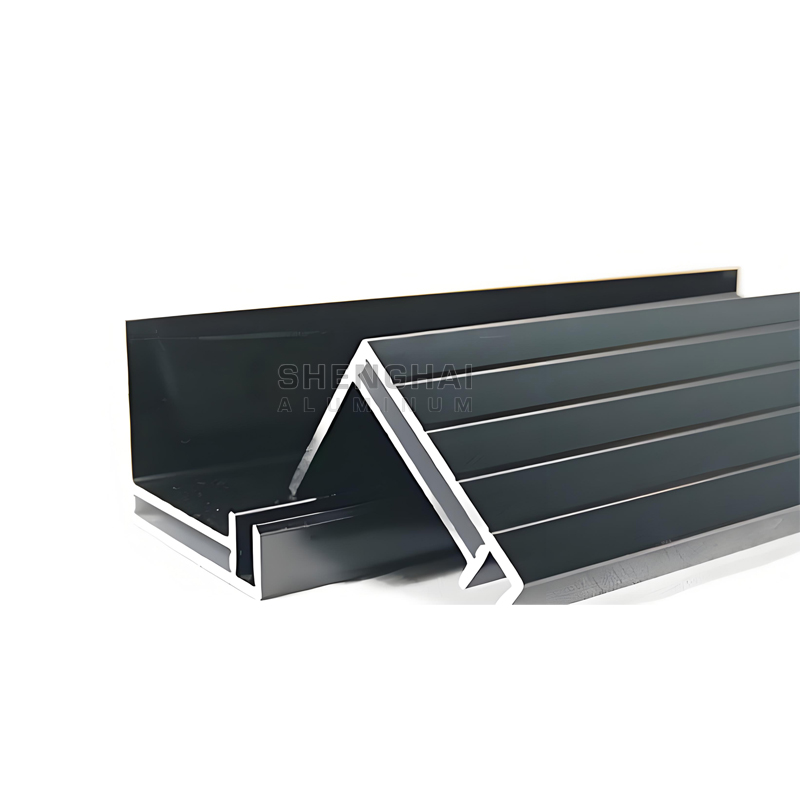

Aluminum Extrusion PV Solar Panel Frame

The aluminum extrusion frame is the most important part of photovoltaic solar energy, supporting the normal operation of the entire solar system. Aluminum solar frames are usually extruded with 6063 grade because 6063 has good corrosion resistance, strength and hardness, fully complying with the requirements of photovoltaic solar energy. The commonly used colors for aluminum solar frames are anodized silver white or black. These two colors can enhance corrosion resistance and heat dissipation performance and take into account practicality. Shenghai Aluminum has more than 6 years of experience in the photovoltaic industry, providing customers with aluminum solar frames, solar panel rails, solar clamp accessories, etc. We have ready-made molds, which can save you the time and cost of making molds, but we can also redesign drawings and make new molds for you.

Product Feature:

Material grade: Aluminum Alloy 6063
Temper: T5, T6
Frame dimensions: 1665 x 1002 | 1956 x 992 | 1979 x 1002 | 2008 x 1002 | Custom
Standard section sizes: 35 x 35 | 40 x 35 | Custom
Surface treatment: Polishing; Anodizing; Sanding; Powder coating; Vacuum plating; Silver plating, etc.
Manufacturing Steps: CNC, drilling, milling, cutting, stamping, welding, assembly
Application: Solar panels (modules)

Our Factory

PE film for each profile/ Shrink PE film for each bundle, Slot packing, Craft paper/ Foam Paper/Carton box

Material & Temper	Alloy 6063-T5,6061-T6 , We will never use aluminum scrap.
Surface Treament	Mill-Finished, Anodizing, Powder Coating, Electrophoresis, Wood Grain, Polishing, Brushing, etc.
Colour	Silver, Champage, Bronze, Golden, Black, Sand coating, Anodized Acid and alkali or Customized.
Film Standard	Anodized:7-23 μ , Powder coating: 60-120 μ , Electrophoresis film: 12-25 μ.
Lifetime	Anodized for 12-15 years outdoor, Powder coating for 18-20 years outdoor.
MOQ	500 kgs. Usually 10-12 tons for a 20'FT; 20-23 tons for a 40HQ.
Length	5.8M or Customized.
Thickness	0.4mm-20mm or Customized.
Application	Building and Construction and Decoration.
Extrusion Machine	600-3600 tons all together 6 extrusion lines.
Capability	Output 1200 tons per month.
Profile type	1. Sliding window and door profiles; 2. Casement window and door profiles; 3. Aluminum profiles for LED light; 4. Tile Trim Aluminum profiles; 5. Curtain wall profile; 6. Aluminum heating insulation profiles; 7. Round/Square General profiles; 8. Aluminum heat sink; 9. Others Industry profiles.
New Moulds	Opening new mould about 7-10 days, absolutely moulds cost can be refund.
Free Samples	Can be available all the time, about 1 days can be sent.
Fabrication	Die designing→ Die making→ Smelting & alloying→ QC→ Extruding→ Cutting→ Heat Treatment→ QC→ Surface treatment→ QC→ Packing→ QC→ Shipping→ After Sale Service
Deep Processing	CNC / Cutting / Punching / Checking / Tapping / Drilling / Milling
Certification	1. ISO9001-2008/ISO 9001:2008; 2. GB/T28001-2001(including all the standard of OHSAS18001:1999); 3. GB/T24001-2004/ISO 14001:2004; 4. GMC.
Payment	1. T/T: 30% deposite, the balance will be paid before delivery; 2. L/C: the balance irrevocable L/C at sight.
Delivery time	1. 15 days production ; 2. If opening mould, plus 7-10 days.
OEM	Available.

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity		Al
									Unit	Total
6063	0.2-0.6	<0.35	<0.1	<0.1	0.45-0.9	<0.1	<0.1	<0.1	<0.05	<0.15	Surplus
6061	0.4-0.8	0.7	0.15-0.4	<0.15	0.8-1.2	0.04-0.35	<0.25	<0.15	<0.05	<0.15	Surplus
6005	0.6-0.9	<0.35	<0.1	<0.1	0.4-0.9	0.1	<0.1	<0.1	<0.05	<0.15	Surplus
6060	0.3-0.6	0.35-0.6	0.1-0.3	<0.1	<0.1	<0.15	<0.05	<0.1	<0.05	<0.15	Surplus
