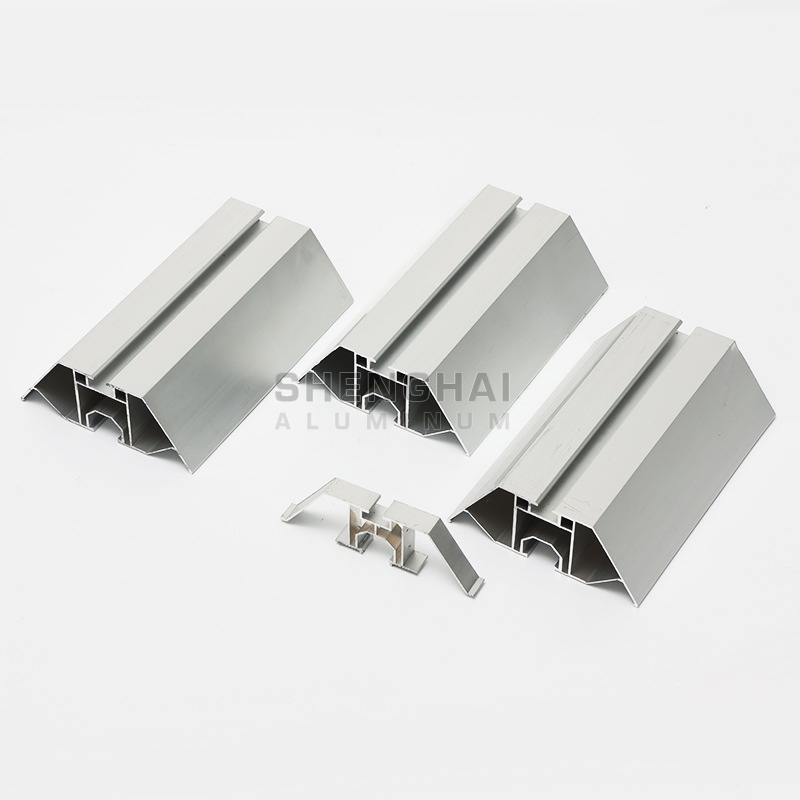

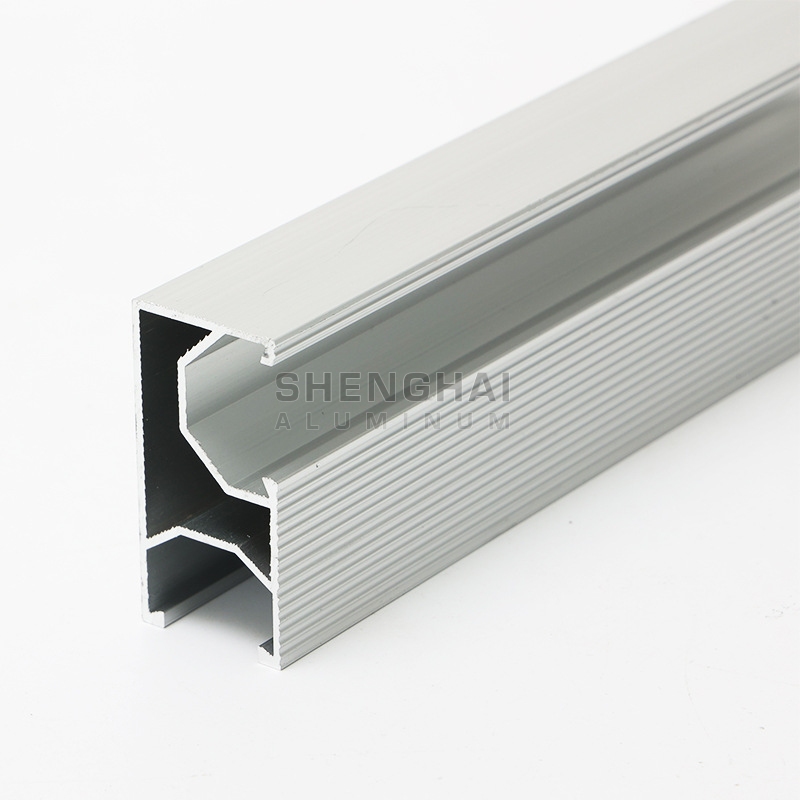

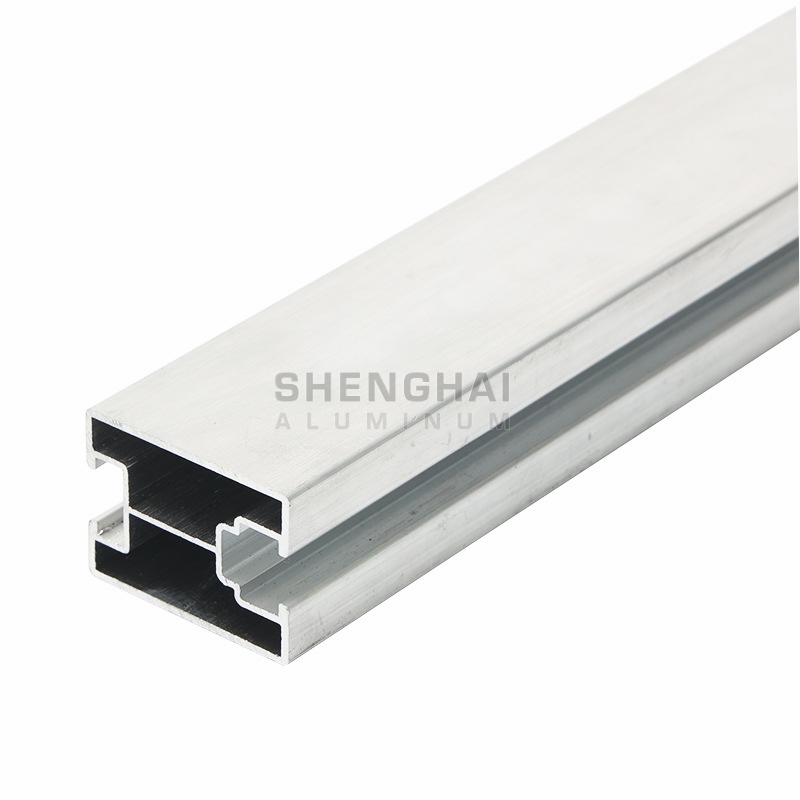

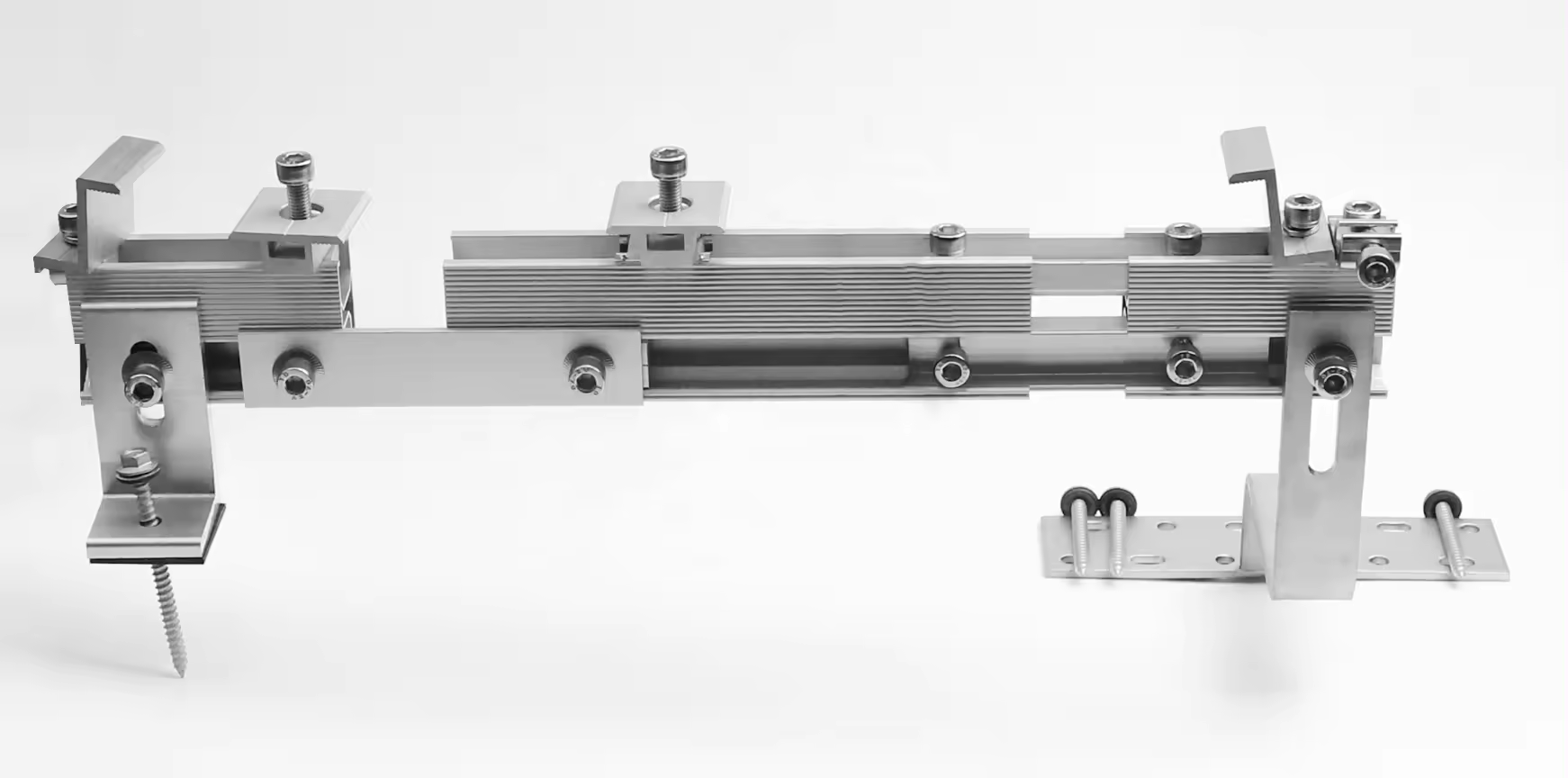

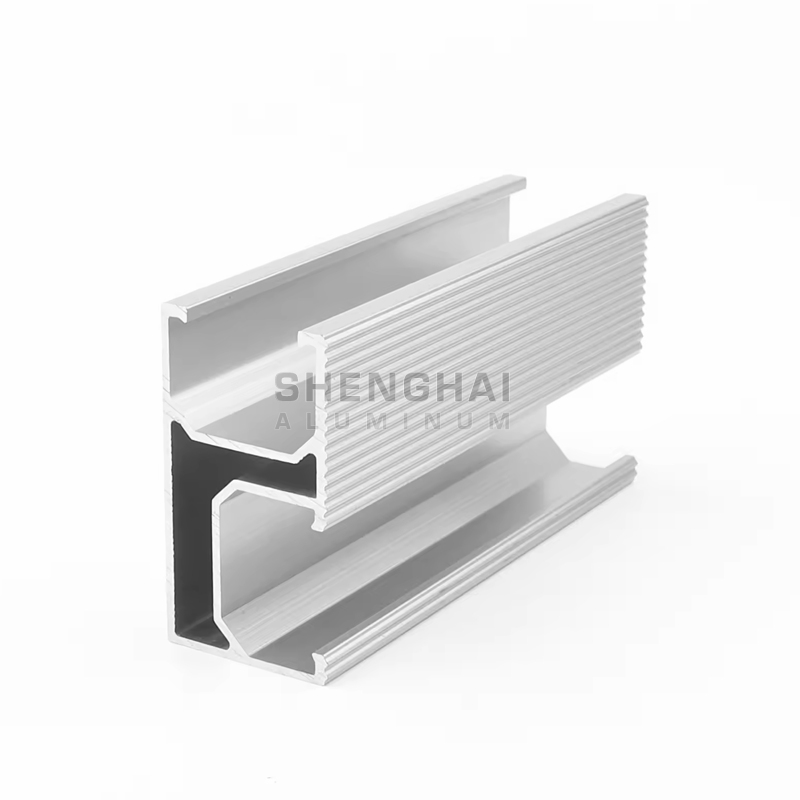

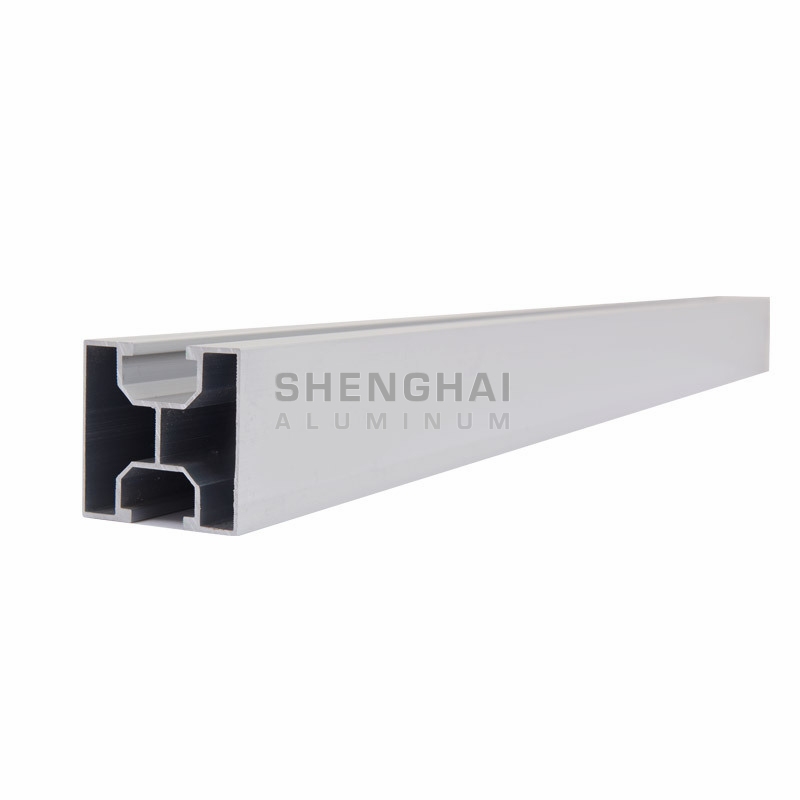

Custom Aluminium Solar Panel PV Mounting Rail Structure

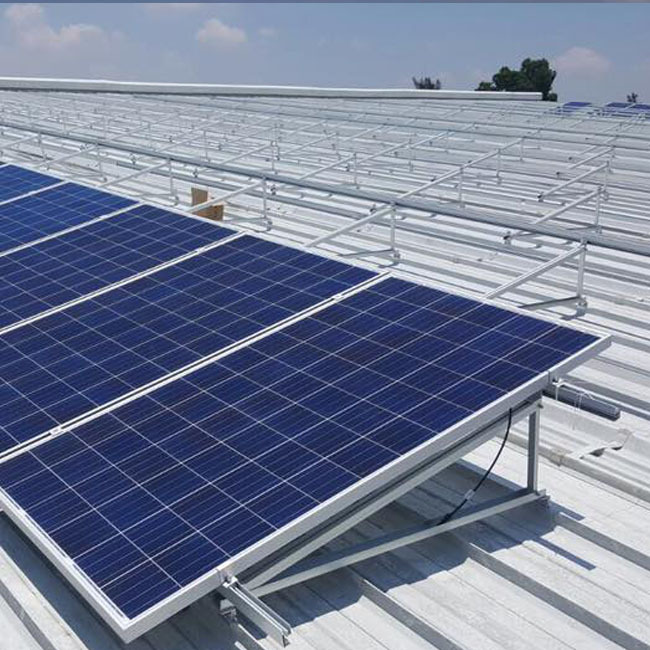

Aluminum profiles have corrosion resistance, high strength, good thermal conductivity, and good processing performance. It is a standard configuration of solar panels and one of the important components of photovoltaic solar energy. Aluminum photovoltaic brackets are one of the key components of photovoltaic power plants. As a support system for components, they are an indispensable part of the photovoltaic industry and play an important role in maximizing the utilization of photovoltaic energy.

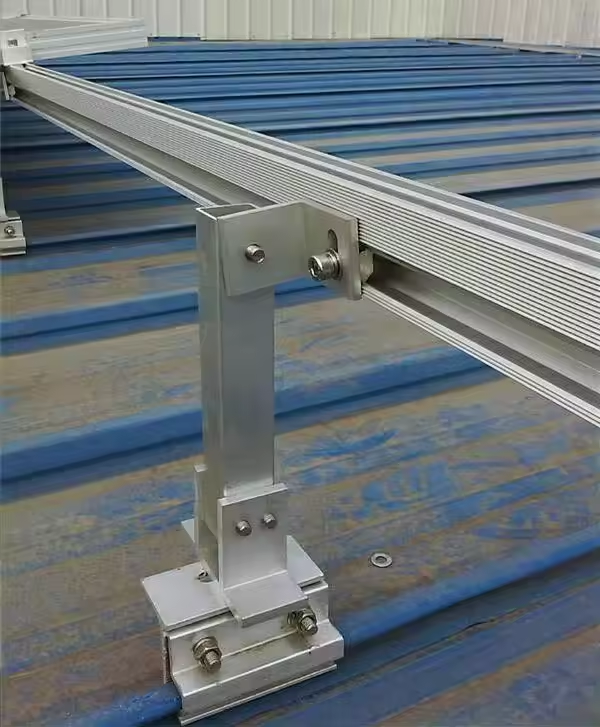

Our aluminum solar panel PV rail brackets are extruded from high-quality aluminum alloy, and the surface treatment is generally anodized, which can better prevent outdoor oxidation and corrosion. According to different movable properties, photovoltaic brackets can be divided into fixed photovoltaic brackets, adjustable photovoltaic brackets and tracking photovoltaic brackets. The stability, load, and safety performance requirements of photovoltaic brackets are relatively high. Shenghai Aluminum has rich experience in solar photovoltaic aluminum profiles. Our projects come from the Netherlands, Australia, New Zealand and other countries. Whether it is solar aluminum frames, solar PV brackets, or solar panel accessories, we can customize them. Welcome to contact us.

Product Feature:

Advantage of aluminum rail solar panel
1. Corrosion resistance and strong oxidation resistance;
2. Strong strength and firmness;
3. Strong tensile strength;
4. High elasticity, rigidity and metal fatigue value;
5. Convenient transportation and installation, even if the surface is scratched, it will not oxidize, and does not affect performance;
6. It can adapt to various environments through convenient selection of different materials;
7. The service life is more than 25 years.

Our Factory

PE film for each profile/ Shrink PE film for each bundle, Slot packing, Craft paper/ Foam Paper/Carton box

Material & Temper	Alloy 6063-T5,6061-T6 , We will never use aluminum scrap.
Surface Treament	Mill-Finished, Anodizing, Powder Coating, Electrophoresis, Wood Grain, Polishing, Brushing, etc.
Colour	Silver, Champage, Bronze, Golden, Black, Sand coating, Anodized Acid and alkali or Customized.
Film Standard	Anodized:7-23 μ , Powder coating: 60-120 μ , Electrophoresis film: 12-25 μ.
Lifetime	Anodized for 12-15 years outdoor, Powder coating for 18-20 years outdoor.
MOQ	500 kgs. Usually 10-12 tons for a 20'FT; 20-23 tons for a 40HQ.
Length	5.8M or Customized.
Thickness	0.4mm-20mm or Customized.
Application	Building and Construction and Decoration.
Extrusion Machine	600-3600 tons all together 6 extrusion lines.
Capability	Output 1200 tons per month.
Profile type	1. Sliding window and door profiles; 2. Casement window and door profiles; 3. Aluminum profiles for LED light; 4. Tile Trim Aluminum profiles; 5. Curtain wall profile; 6. Aluminum heating insulation profiles; 7. Round/Square General profiles; 8. Aluminum heat sink; 9. Others Industry profiles.
New Moulds	Opening new mould about 7-10 days, absolutely moulds cost can be refund.
Free Samples	Can be available all the time, about 1 days can be sent.
Fabrication	Die designing→ Die making→ Smelting & alloying→ QC→ Extruding→ Cutting→ Heat Treatment→ QC→ Surface treatment→ QC→ Packing→ QC→ Shipping→ After Sale Service
Deep Processing	CNC / Cutting / Punching / Checking / Tapping / Drilling / Milling
Certification	1. ISO9001-2008/ISO 9001:2008; 2. GB/T28001-2001(including all the standard of OHSAS18001:1999); 3. GB/T24001-2004/ISO 14001:2004; 4. GMC.
Payment	1. T/T: 30% deposite, the balance will be paid before delivery; 2. L/C: the balance irrevocable L/C at sight.
Delivery time	1. 15 days production ; 2. If opening mould, plus 7-10 days.
OEM	Available.

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity		Al
									Unit	Total
6063	0.2-0.6	<0.35	<0.1	<0.1	0.45-0.9	<0.1	<0.1	<0.1	<0.05	<0.15	Surplus
6061	0.4-0.8	0.7	0.15-0.4	<0.15	0.8-1.2	0.04-0.35	<0.25	<0.15	<0.05	<0.15	Surplus
6005	0.6-0.9	<0.35	<0.1	<0.1	0.4-0.9	0.1	<0.1	<0.1	<0.05	<0.15	Surplus
6060	0.3-0.6	0.35-0.6	0.1-0.3	<0.1	<0.1	<0.15	<0.05	<0.1	<0.05	<0.15	Surplus
