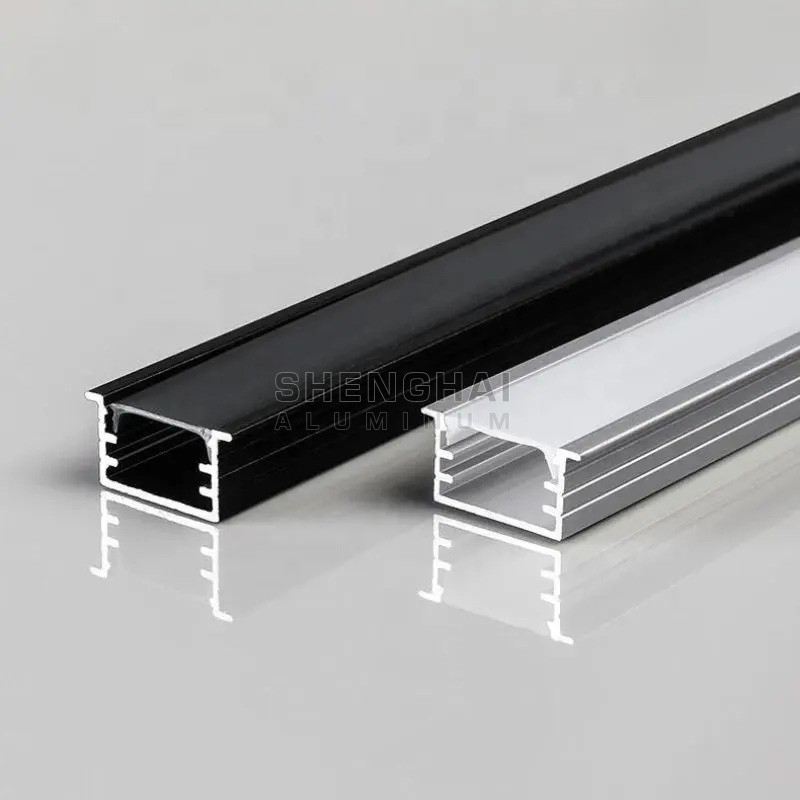

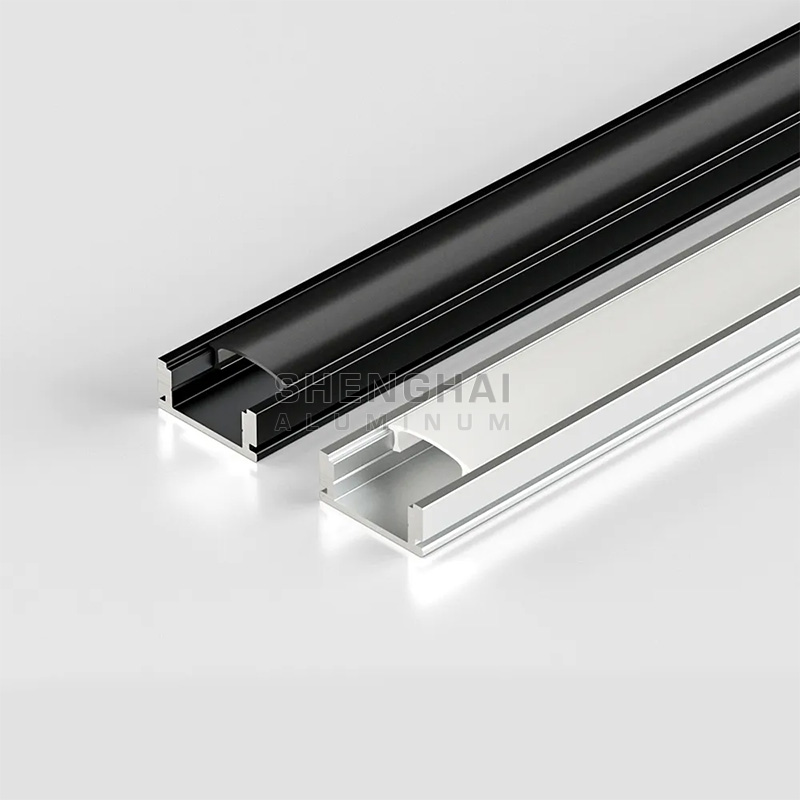

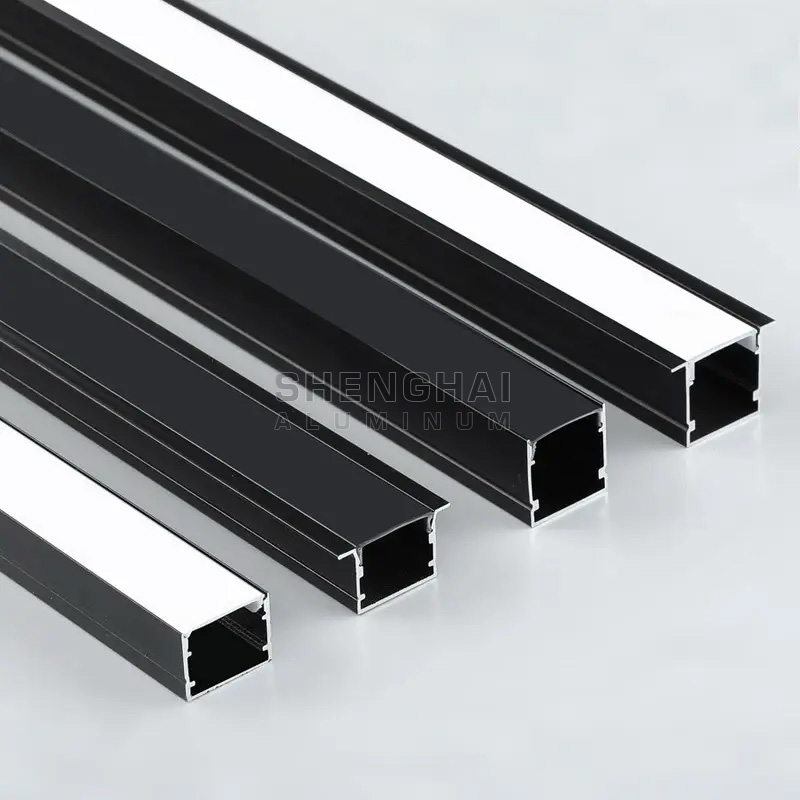

Aluminum LED Strip Channel And Diffuser

Product Description
Aluminum LED strip channel and diffuser trough features a unique setback cover design that tilts the light source backward from the plane of the cover or lens. This design effectively reduces glare and creates a soft and even lighting effect, which is particularly suitable for scenarios such as office lighting, retail display and residential space.
Made of high-quality extruded aluminum, with an anodized or powder-coated surface treatment, it has excellent oxidation resistance and longer service life. The standard length is 2 meters per piece, and it supports customized lengths on demand to meet different needs.
There are 5 types of lighting diffusers available, including the PMMA and PC series. All are made of high-quality imported materials with a variety of light transmittances for a variety of lighting scenarios. A full range of accessories is provided, including end caps with and without wire holes and spring clips, which facilitate the trough's quick and firm installation on the ceiling.

Features:
Material: 6063-T5 Extruded Aluminum
Surface Treatment: Powder Coated Or Anodized
Colors: Silver / Black / White
Size: 44*25mm/1.73"*0.98"(W*H)
Length: 1M / 2M
Custom Lengths: Yes
Diffuser: PMMA Opal Matte Cover, PMMA Semi-clear Cover, PMMA Clear Cover, PC Diffused Cover, Black PC Frosted Cover
Max LED Strip Width: 18mm
Max Power: 15W/M
Beam Angle: 100°

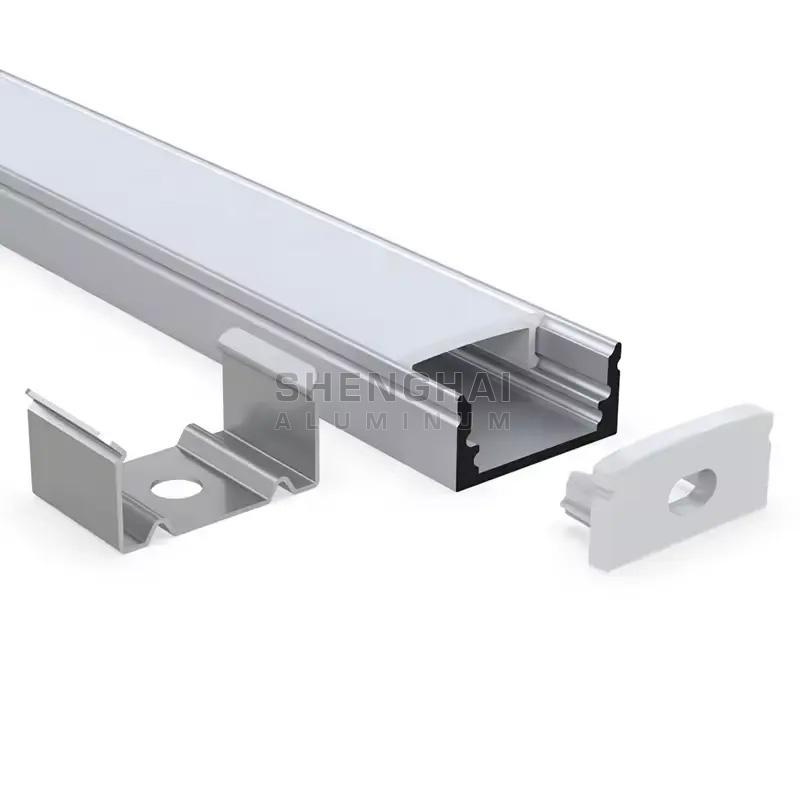

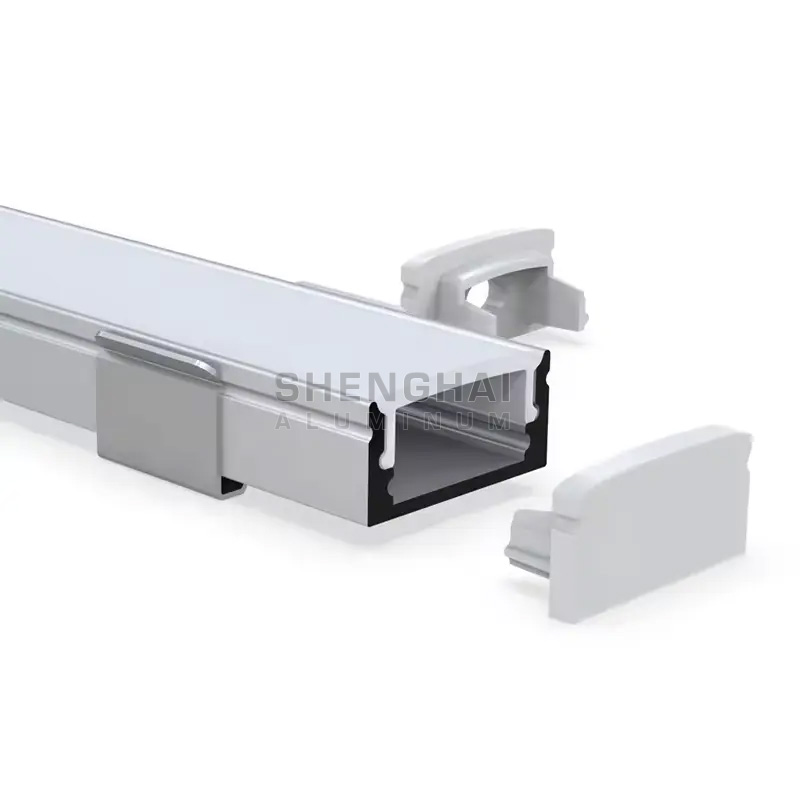

End Caps With And Without Wire Holes Included
1800, 900, 900 Vertical,  and 135° Couplers Sold Separately
Spring Clips Included

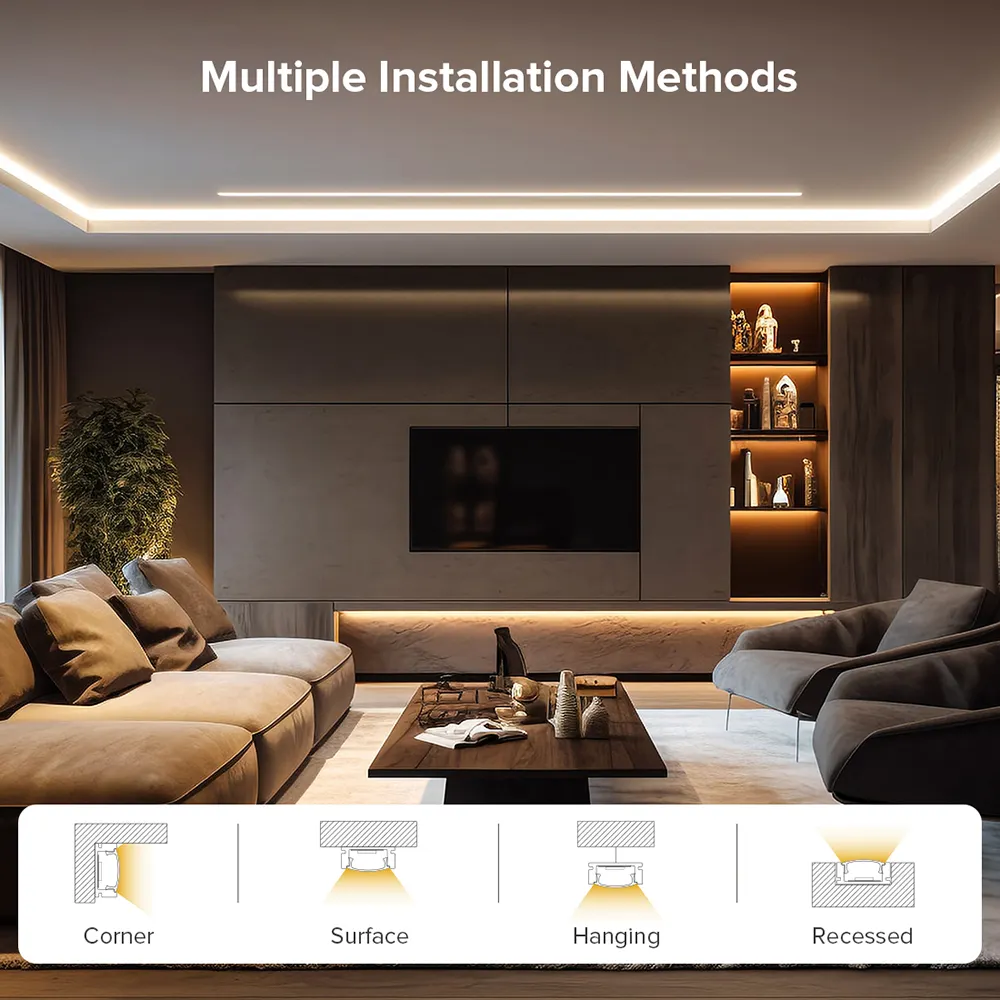

Installation: Recessed

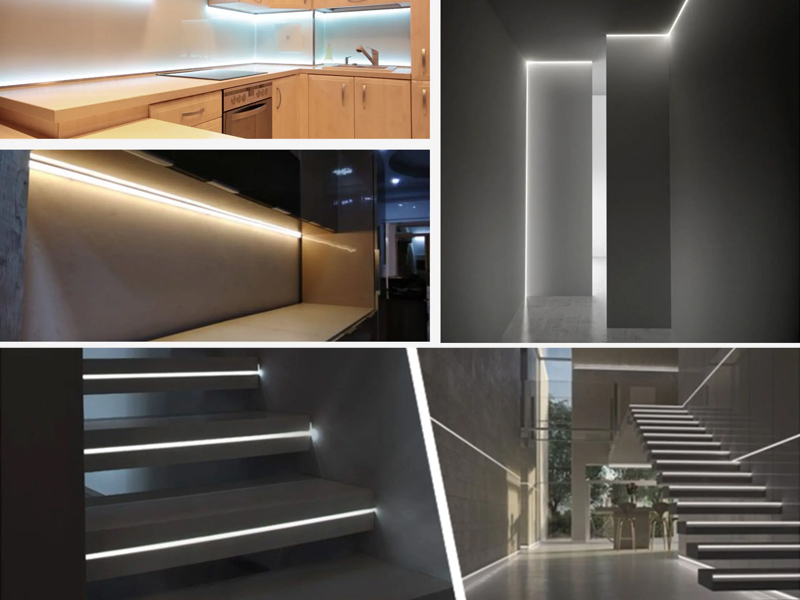

Main Applications:
Under cabinet lighting
Soffit lighting
Closet lighting
Cabinet lighting
Corner lighting
Display lighting
Floor lighting
Flush mount lighting
Pavement lighting
Stair lighting
Retail lighting
Commercial lighting

Types of LED Light Aluminum Profile
Surface mounted LED aluminum profile
Embedded LED aluminum profile
Chandelier LED aluminum profile
Corner LED aluminum profile
Wall-mounted LED aluminum profile
Floor standing LED aluminum profile
Mini LED aluminum profile
Lens LED aluminum profile

Product Application

PE film for each profile/ Shrink PE film for each bundle, Slot packing, Craft paper/ Foam Paper/Carton box

Material & Temper	Alloy 6063-T5,6061-T6 , We will never use aluminum scrap.
Surface Treament	Mill-Finished, Anodizing, Powder Coating, Electrophoresis, Wood Grain, Polishing, Brushing, etc.
Colour	Silver, Champage, Bronze, Golden, Black, Sand coating, Anodized Acid and alkali or Customized.
Film Standard	Anodized:7-23 μ , Powder coating: 60-120 μ , Electrophoresis film: 12-25 μ.
Lifetime	Anodized for 12-15 years outdoor, Powder coating for 18-20 years outdoor.
MOQ	500 kgs. Usually 10-12 tons for a 20'FT; 20-23 tons for a 40HQ.
Length	5.8M or Customized.
Thickness	0.4mm-20mm or Customized.
Application	Building and Construction and Decoration.
Extrusion Machine	600-3600 tons all together 6 extrusion lines.
Capability	Output 1200 tons per month.
Profile type	1. Sliding window and door profiles; 2. Casement window and door profiles; 3. Aluminum profiles for LED light; 4. Tile Trim Aluminum profiles; 5. Curtain wall profile; 6. Aluminum heating insulation profiles; 7. Round/Square General profiles; 8. Aluminum heat sink; 9. Others Industry profiles.
New Moulds	Opening new mould about 7-10 days, absolutely moulds cost can be refund.
Free Samples	Can be available all the time, about 1 days can be sent.
Fabrication	Die designing→ Die making→ Smelting & alloying→ QC→ Extruding→ Cutting→ Heat Treatment→ QC→ Surface treatment→ QC→ Packing→ QC→ Shipping→ After Sale Service
Deep Processing	CNC / Cutting / Punching / Checking / Tapping / Drilling / Milling
Certification	1. ISO9001-2008/ISO 9001:2008; 2. GB/T28001-2001(including all the standard of OHSAS18001:1999); 3. GB/T24001-2004/ISO 14001:2004; 4. GMC.
Payment	1. T/T: 30% deposite, the balance will be paid before delivery; 2. L/C: the balance irrevocable L/C at sight.
Delivery time	1. 15 days production ; 2. If opening mould, plus 7-10 days.
OEM	Available.

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity		Al
									Unit	Total
6063	0.2-0.6	<0.35	<0.1	<0.1	0.45-0.9	<0.1	<0.1	<0.1	<0.05	<0.15	Surplus
6061	0.4-0.8	0.7	0.15-0.4	<0.15	0.8-1.2	0.04-0.35	<0.25	<0.15	<0.05	<0.15	Surplus
6005	0.6-0.9	<0.35	<0.1	<0.1	0.4-0.9	0.1	<0.1	<0.1	<0.05	<0.15	Surplus
6060	0.3-0.6	0.35-0.6	0.1-0.3	<0.1	<0.1	<0.15	<0.05	<0.1	<0.05	<0.15	Surplus
