Bangladesh Aluminium Profile Channel For LED Lighting
Grade:
6000 Series
Temper:
T3-T8
Application:
Decorations
Shape:
Square or round, Customized
Color:
Different Colors
Material & Temper:
: Aluminum 6063-T5 / 6061-T6
Thickness:
0.65mm for sliding, 0.8mm for casement, or Customized for aluminum
Precision:
+-0.15mm
Surface Treatment:
Mill finish, powder coated, anodized, electrophoresis, Polishing
Machining:
High Precision CNC Machining
Deep Process:
Precise cutting, drilling, milling, fabricating
Product Description
Why are LED lighting installed in aluminum profile channels? Because the aluminum profile has good heat dissipation performance and the surface of the profile is anodized, a dense oxide film will be formed. This film can help the aluminum profile channel achieve a good anti-corrosion effect, which is helpful for the subsequent use of LED light. Very helpful. The LED aluminum profile channels provided by Shenghai Aluminium to customers are all extruded from 6063 aluminum alloy and then undergo deep processing such as anodizing, high-precision cutting and drilling according to customer requirements.
Our LED aluminum profile products include: LED strip aluminum channel, U-shaped, baseboard aluminum profile, LED hanging wire casing, LED light aluminum frame, etc., with a wide range of varieties, and we also support customization. Contact us quickly to get the LED light aluminum profile solution.

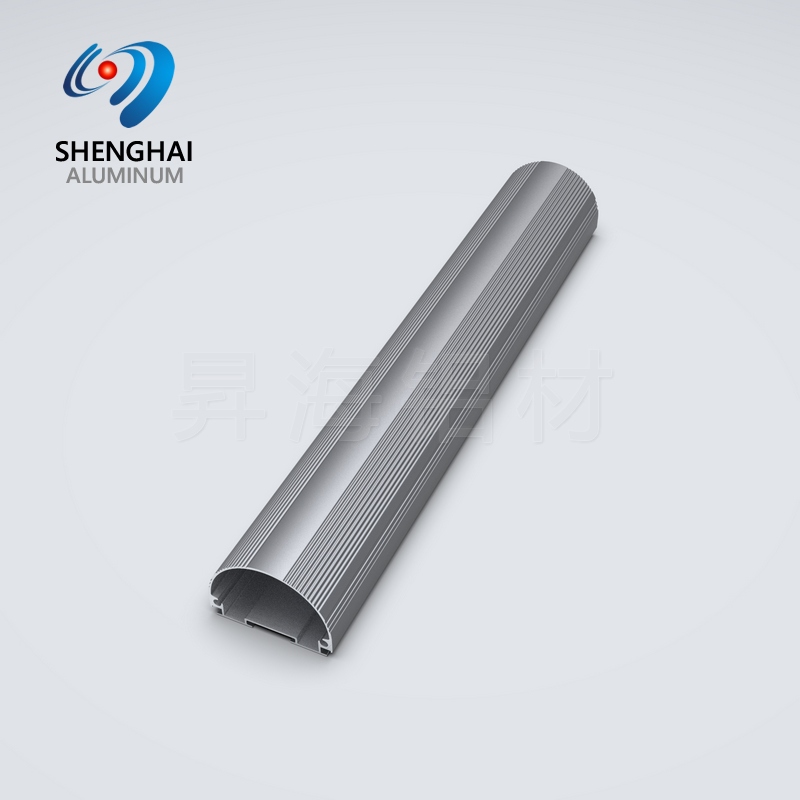

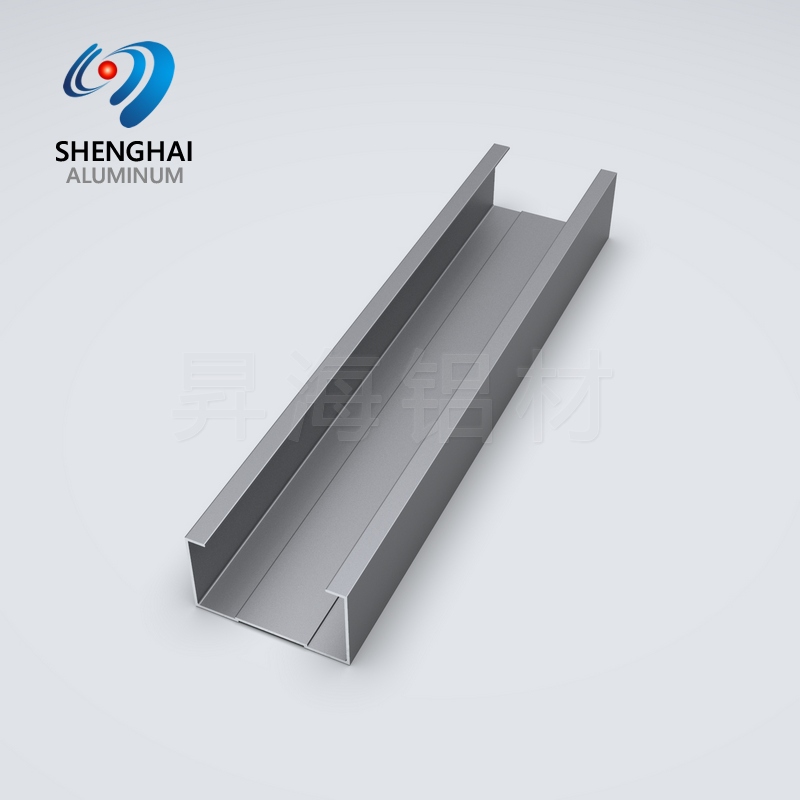

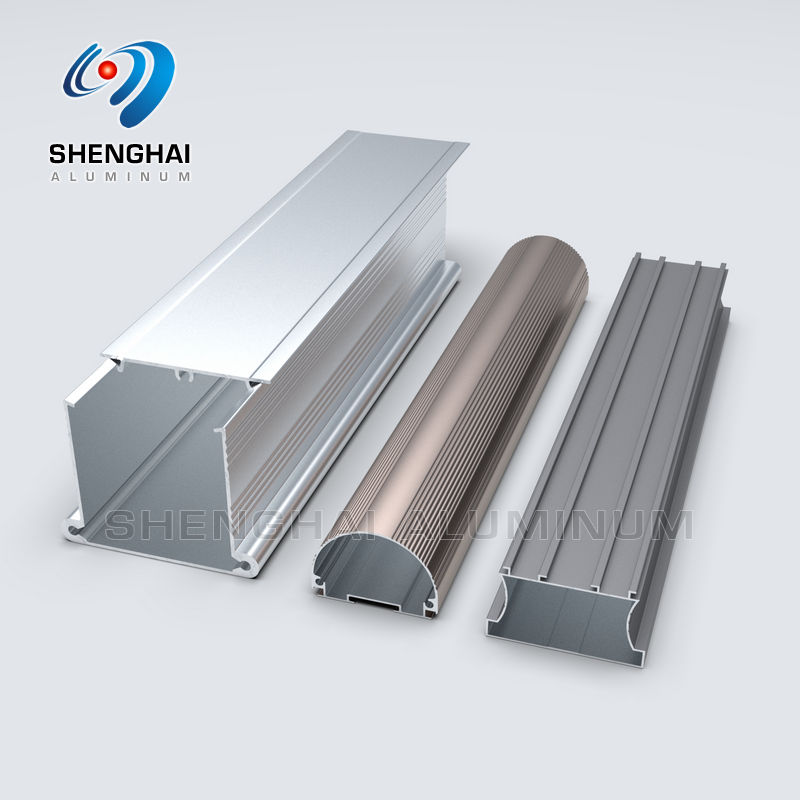

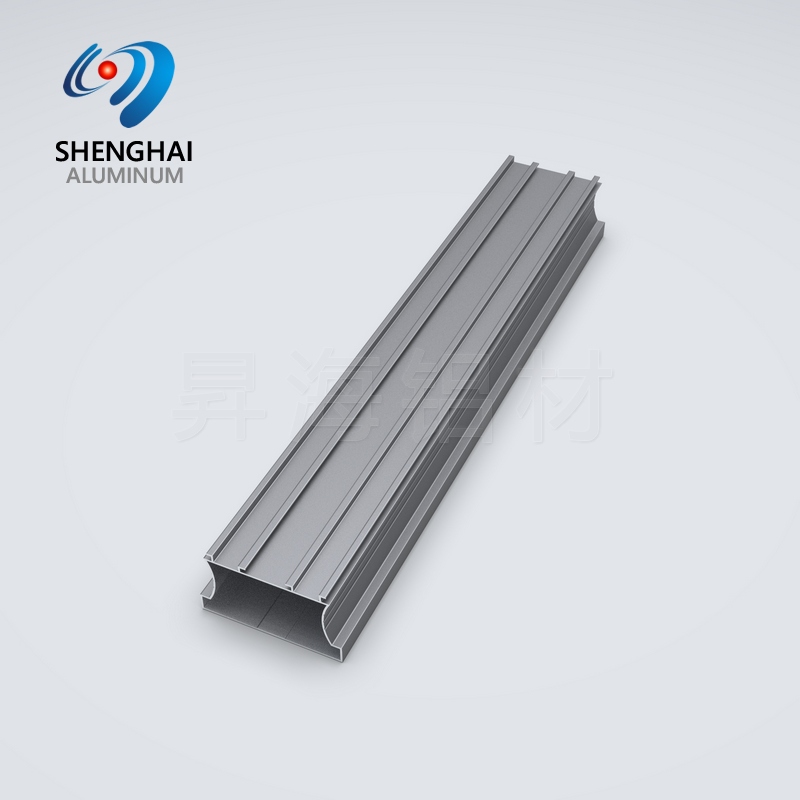

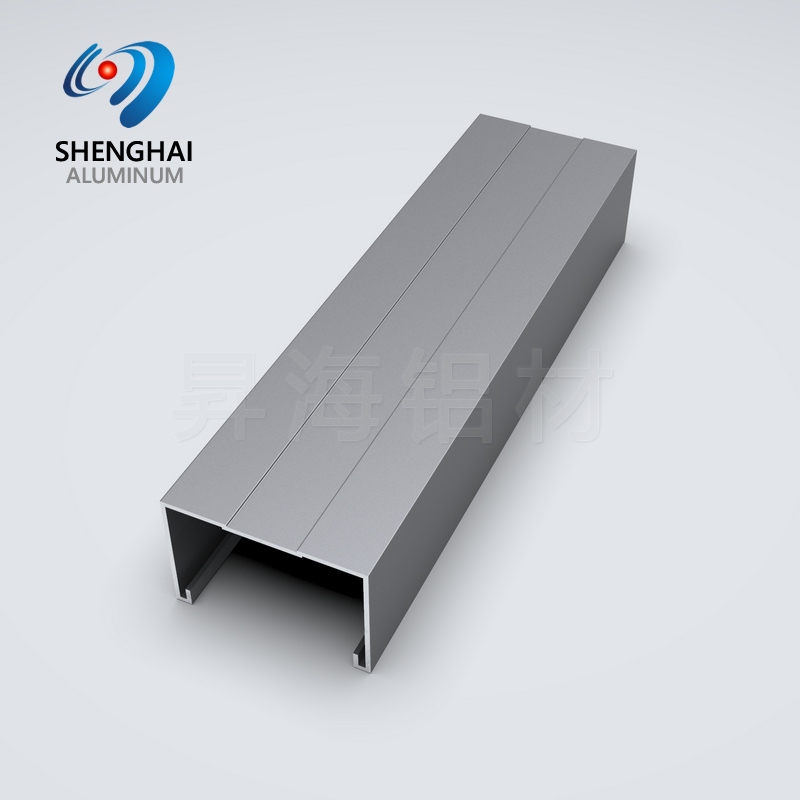

Types of LED Light Aluminum Profile
Surface mounted LED aluminum profile
Embedded LED aluminum profile
Chandelier LED aluminum profile
Corner LED aluminum profile
Wall-mounted LED aluminum profile
Floor standing LED aluminum profile
Mini LED aluminum profile
Lens LED aluminum profile
Why are LED lighting installed in aluminum profile channels? Because the aluminum profile has good heat dissipation performance and the surface of the profile is anodized, a dense oxide film will be formed. This film can help the aluminum profile channel achieve a good anti-corrosion effect, which is helpful for the subsequent use of LED light. Very helpful. The LED aluminum profile channels provided by Shenghai Aluminium to customers are all extruded from 6063 aluminum alloy and then undergo deep processing such as anodizing, high-precision cutting and drilling according to customer requirements.
Our LED aluminum profile products include: LED strip aluminum channel, U-shaped, baseboard aluminum profile, LED hanging wire casing, LED light aluminum frame, etc., with a wide range of varieties, and we also support customization. Contact us quickly to get the LED light aluminum profile solution.
Types of LED Light Aluminum Profile
Surface mounted LED aluminum profile
Embedded LED aluminum profile
Chandelier LED aluminum profile
Corner LED aluminum profile
Wall-mounted LED aluminum profile
Floor standing LED aluminum profile
Mini LED aluminum profile
Lens LED aluminum profile
Product Application
Packaging Details
PE film for each profile/ Shrink PE film for each bundle, Slot packing, Craft paper/ Foam Paper/Carton box Product Detail
Material & Temper | Alloy 6063-T5,6061-T6 , We will never use aluminum scrap. |
Surface Treament | Mill-Finished, Anodizing, Powder Coating, Electrophoresis, Wood Grain, Polishing, Brushing, etc. |
Colour | Silver, Champage, Bronze, Golden, Black, Sand coating, Anodized Acid and alkali or Customized. |
Film Standard | Anodized:7-23 μ , Powder coating: 60-120 μ , Electrophoresis film: 12-25 μ. |
Lifetime | Anodized for 12-15 years outdoor, Powder coating for 18-20 years outdoor. |
MOQ | 500 kgs. Usually 10-12 tons for a 20'FT; 20-23 tons for a 40HQ. |
Length | 5.8M or Customized. |
Thickness | 0.4mm-20mm or Customized. |
Application | Building and Construction and Decoration. |
Extrusion Machine | 600-3600 tons all together 6 extrusion lines. |
Capability | Output 1200 tons per month. |
Profile type |
1. Sliding window and door profiles; 2. Casement window and door profiles; 3. Aluminum profiles for LED light; 4. Tile Trim Aluminum profiles; 5. Curtain wall profile; 6. Aluminum heating insulation profiles; 7. Round/Square General profiles; 8. Aluminum heat sink; 9. Others Industry profiles. |
New Moulds | Opening new mould about 7-10 days, absolutely moulds cost can be refund. |
Free Samples | Can be available all the time, about 1 days can be sent. |
Fabrication | Die designing→ Die making→ Smelting & alloying→ QC→ Extruding→ Cutting→ Heat Treatment→ QC→ Surface treatment→ QC→ Packing→ QC→ Shipping→ After Sale Service |
Deep Processing | CNC / Cutting / Punching / Checking / Tapping / Drilling / Milling |
Certification |
1. ISO9001-2008/ISO 9001:2008; 2. GB/T28001-2001(including all the standard of OHSAS18001:1999); 3. GB/T24001-2004/ISO 14001:2004; 4. GMC. |
Payment |
1. T/T: 30% deposite, the balance will be paid before delivery; 2. L/C: the balance irrevocable L/C at sight. |
Delivery time |
1. 15 days production ; 2. If opening mould, plus 7-10 days. |
OEM | Available. |
Table of Chemical Composition of Aluminum Alloy
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al | |
Unit | Total | ||||||||||
6063 | 0.2-0.6 | <0.35 | <0.1 | <0.1 | 0.45-0.9 | <0.1 | <0.1 | <0.1 | <0.05 | <0.15 | Surplus |
6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | <0.15 | 0.8-1.2 | 0.04-0.35 | <0.25 | <0.15 | <0.05 | <0.15 | Surplus |
6005 | 0.6-0.9 | <0.35 | <0.1 | <0.1 | 0.4-0.9 | 0.1 | <0.1 | <0.1 | <0.05 | <0.15 | Surplus |
6060 | 0.3-0.6 | 0.35-0.6 | 0.1-0.3 | <0.1 | <0.1 | <0.15 | <0.05 | <0.1 | <0.05 | <0.15 | Surplus |
